EVOLVE 03
This set of detailed drawings are a part of the Evolve Mall Package 3 set. The set comprises the Washroom, OKU, Mothers Room and Tenants Pantry in the Evolve Mall Packages.
Like Evolve / Package 3,this follows another set of detailed drawings from the mothers room regarding the baby changing station. The whole countertop is custom made and also made from solid surfaces. The cabinet doors beneath the baby changing station will not be made of solid surface but with plywood and laminate finishes. Two types of laminates materials used.
This set of drawings below is the Baby Changing station in Mother’s room and a continuation from Evolve 03 / Washrooms.
-
Mother's Room

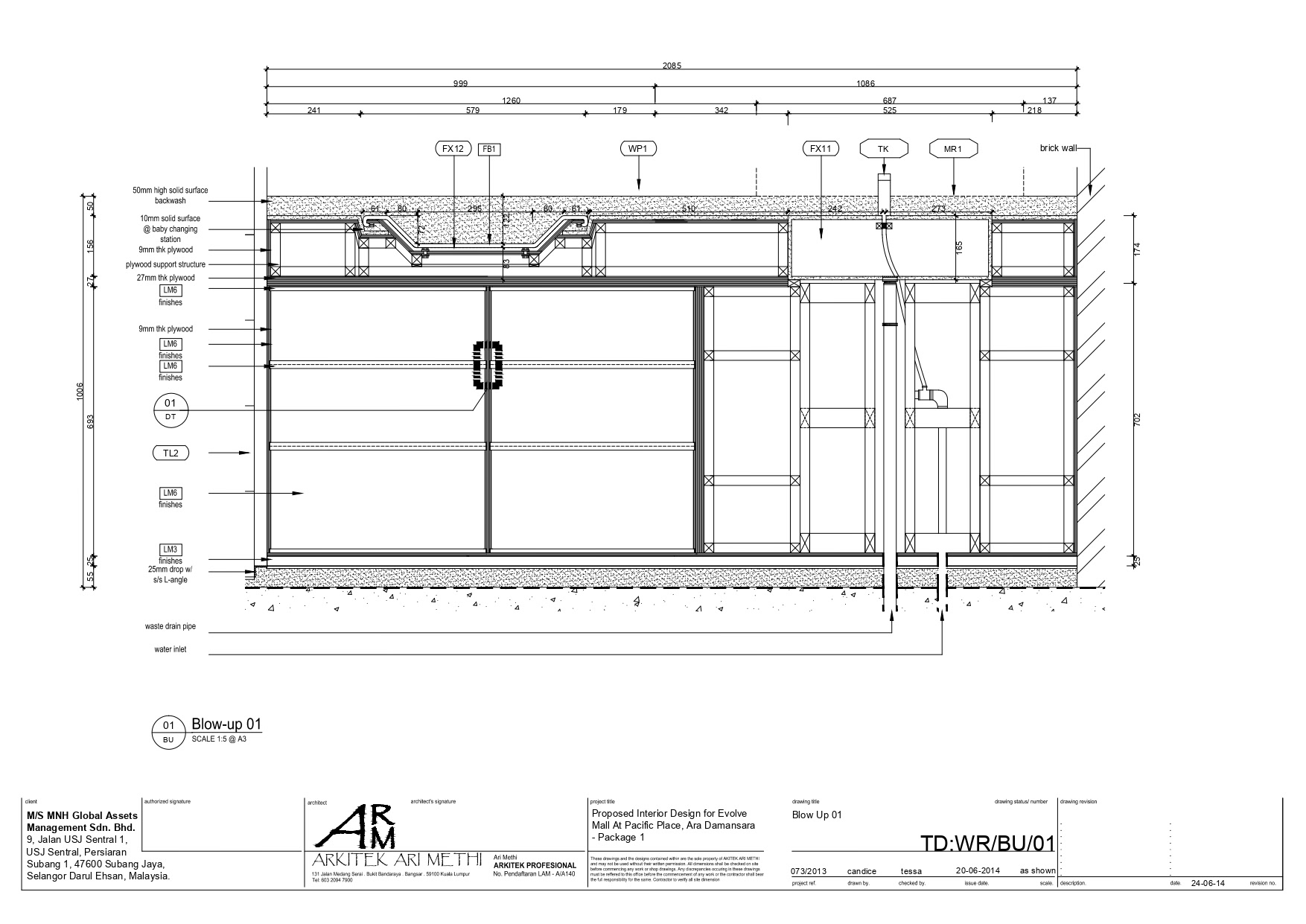

Elevation drawings /

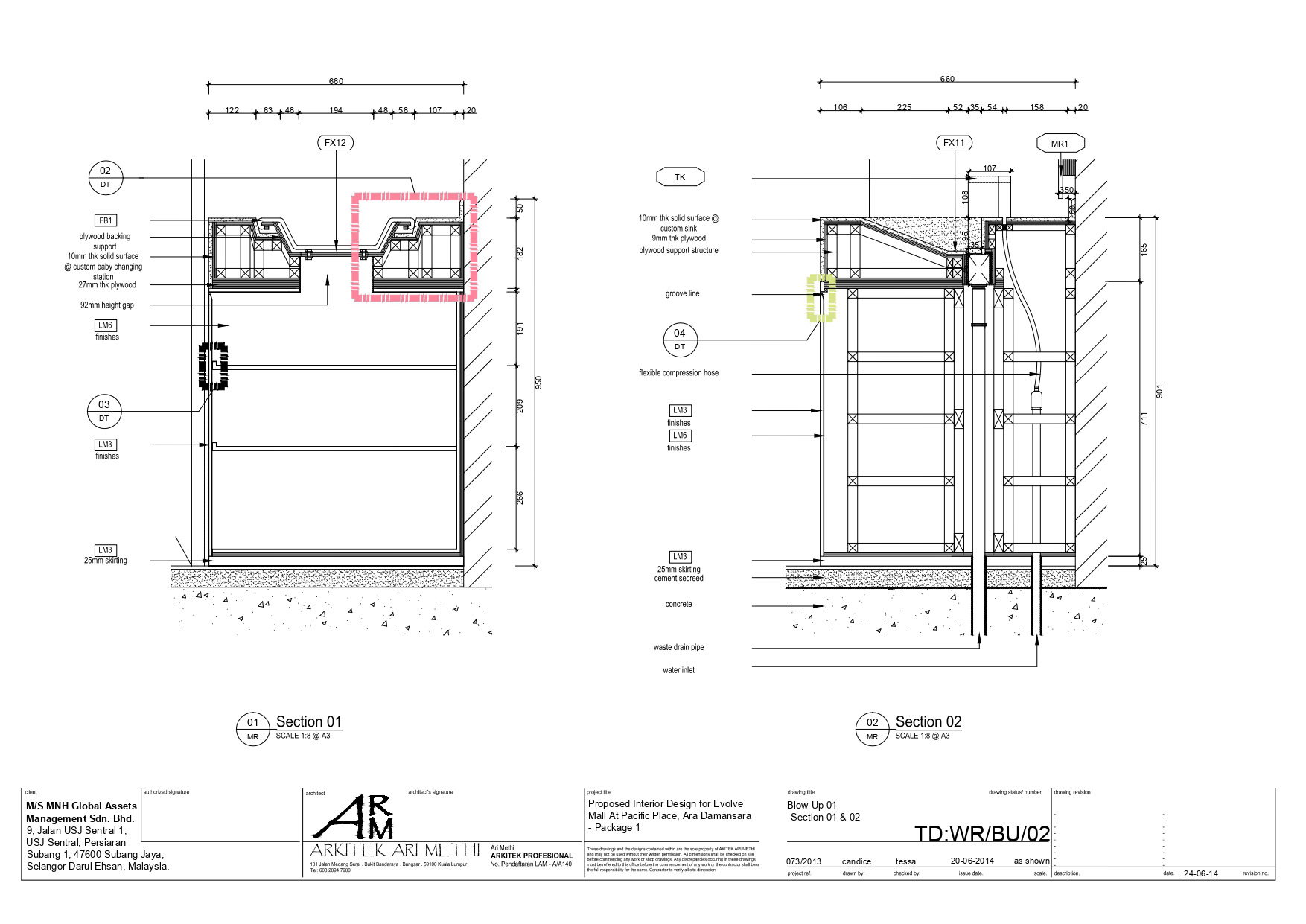

Section drawings /

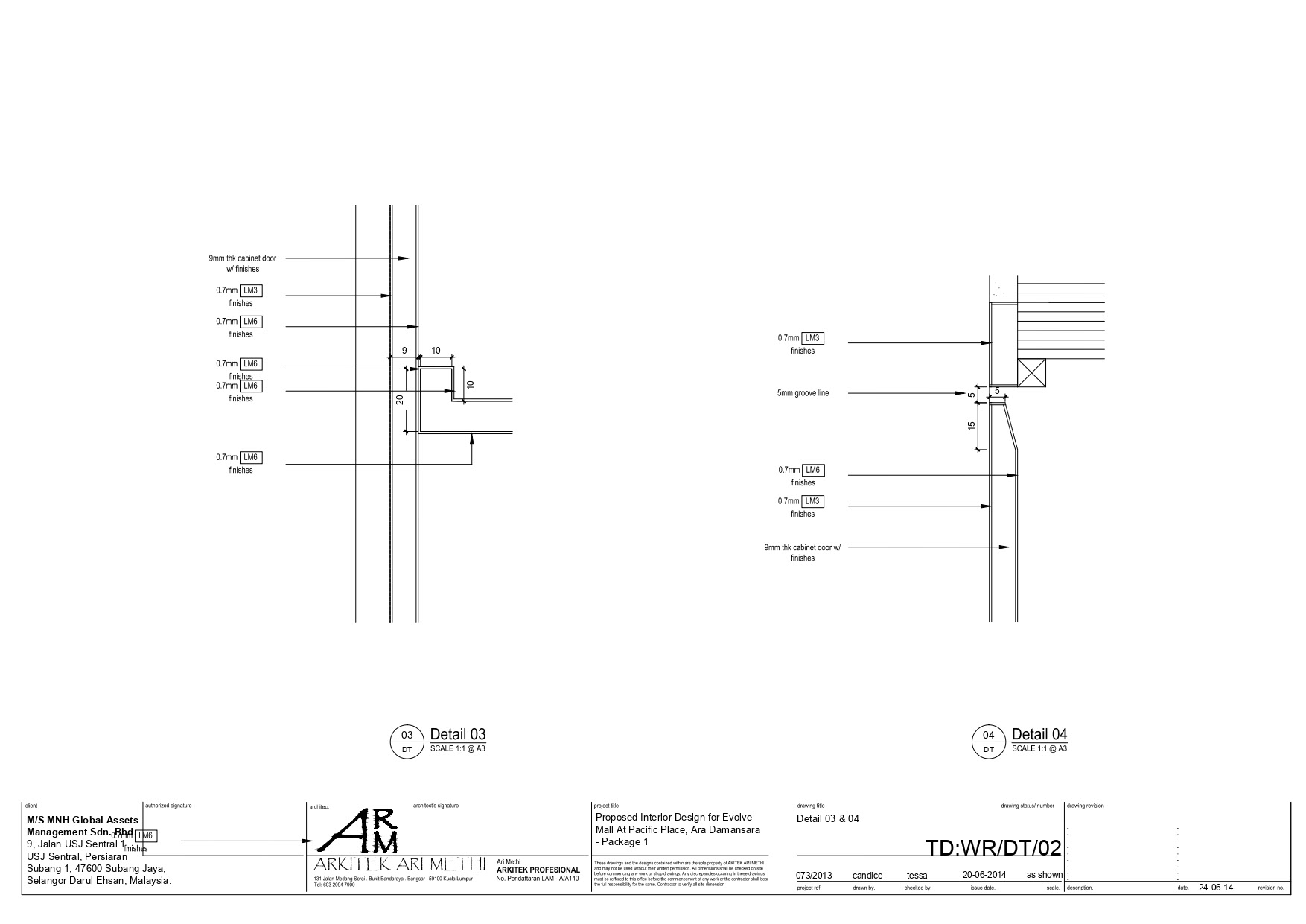

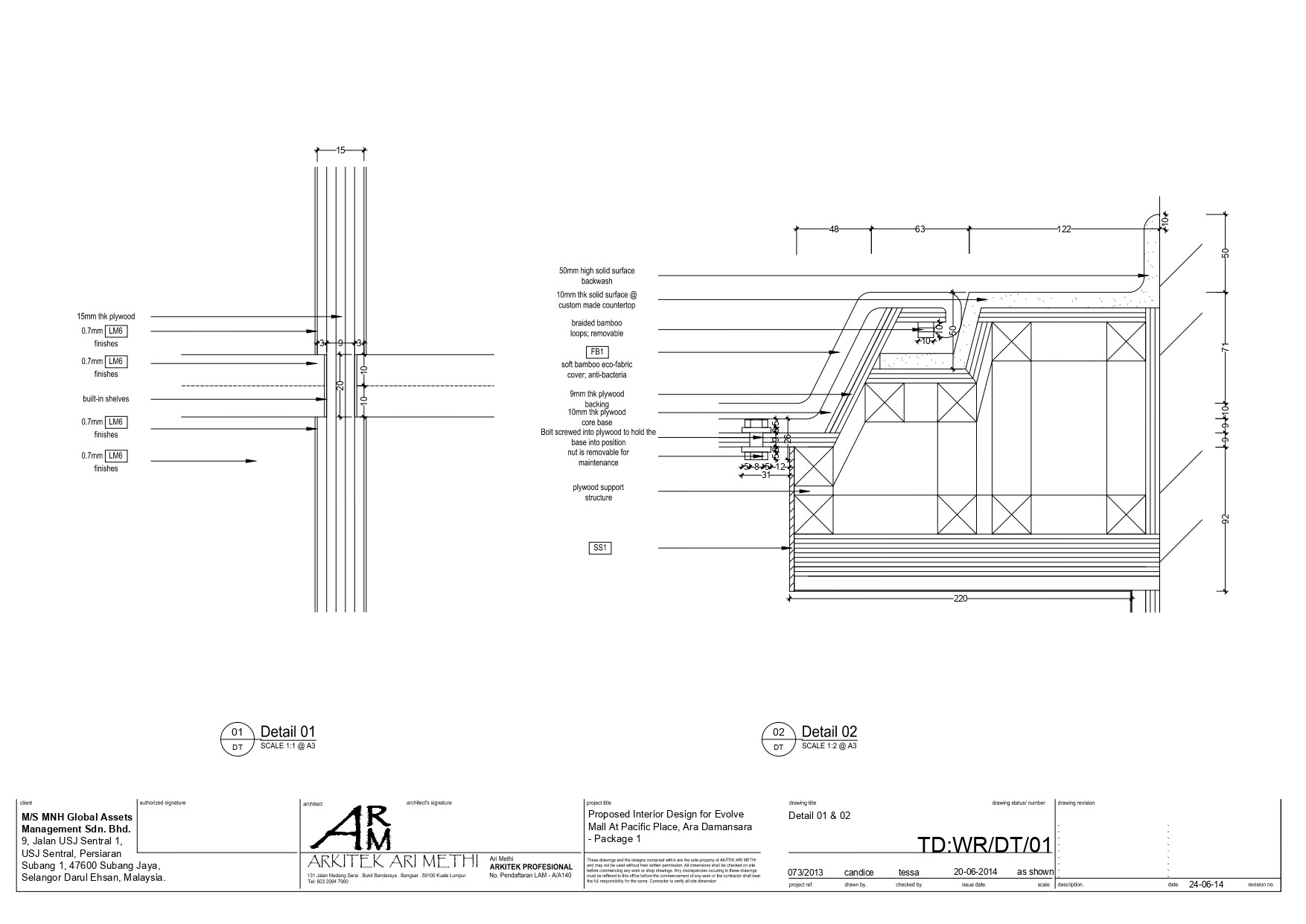

Detailing /
